used

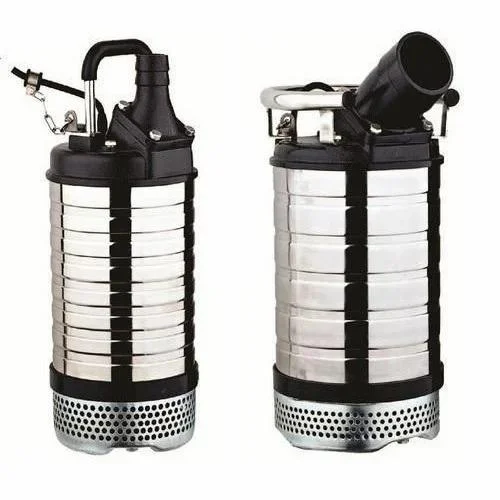

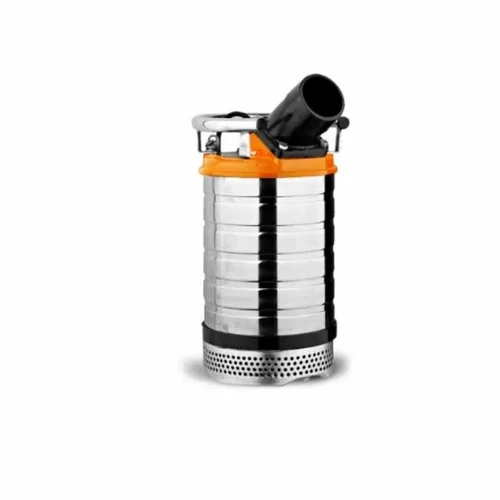

Submersible Pump BTALI BT 32 2 TSSP
Description
| Number Of Stages | Multi Stage Pump |
| Motor Horsepower | 5 - 20 HP |
| Brand | Btali |
| Usage/Application | Drainage & Purification |
| Model Name/Number | 32.2 TSSP |
| Type | Borewell |
| Motor Phase | Three Phase |
| Head | 15 to 50 m |
| Maximum Discharge Flow | 501-1000 LPM |
| Power Rating | 3.7 kw |
| I Deal In | New Only |
| Country of Origin | Made in India |
Product Details:
| Brand | Btali |
| Model Name/Number | KS 32.2 |
| Frequency | 50 Hz |
| Cable Length | 20 m (H07RNF) |
| Mechanical Seal Material | SiC/SiC-SiC/SiC |
| O Ring and Volute Material | NBR Rubber |
| Nut and Bolt Material | Stainless Steel |
| Motor Execution | IP68 Class F |
| Voltage | 440 V |
| Max Water Depth | 50 m |
| Impeller Passage | 8.5 |
| Power | 2.2 kW/3.0 HP |
| Outlet Diameter | 80 mm |
| Max Flow | 833 l/min |
| Max Head | 21 m |
| Gross Weight | 34 Kg |
| Shaft Material | Stainless Steel AISI 420 |
| Outercasing Material | Stainless Steel AISI 304 |
| Suction Plate Material | Ductile Iron |
